Our energy storage battery is specifically designed for compatibility with photovoltaic systems. It comes with a built-in BMS that monitors the battery's operation and prevents it from exceeding its design limitations. With an integrated WIFI module, users can easily monitor the running information of the battery through their mobile phones and computers.
One of the most exciting features of our battery is that its capacity can easily be increased by adding another battery. This means that as your energy needs grow, so too can your energy storage capacity.
Overall, our energy storage battery is a reliable and efficient solution for anyone looking to optimize their photovoltaic system. With advanced monitoring capabilities and the ability to expand capacity as needed, our battery is a crucial asset for anyone looking to make the most out of their solar power investment.
Up to 8S/4P configurations are possible for the installation of this energy storage battery, allowing for both parallel and series modes.
Our battery is flexible in terms of installation, as it can be mounted on a wall or installed on the ground. This gives users the option to choose the ideal installation method that suits their specific needs and preferences. Whether you prefer a wall-mounted or ground-mounted battery, our product ensures reliable and efficient power supply for various applications.
3.The battery has high energy eciency (Charge and discharge)>97%
Our battery boasts a fast charging and discharging rate, capable of reaching a maximum charge current of 60A and a maximum discharge current of 80A.
The dual hardware protection equipment ensures that the battery is equipped with robust safety measures.
The BMS relay design is preferred in the battery as it offers greater safety and reliability. It allows for real-time monitoring and control of various parameters and status, ensuring efficient performance.
7.The battery has long life reliable LFP cells,cycle life which is >6000cycle
The relay and fuse components of the EB5000 are renowned for their exceptional reliability. These key devices have received certifications from both UL and IEC, illustrating their high standards and performance.
The digital monitor system APP with WIFI on the EB5000 has made it even more intelligent. This enhancement brings greater convenience and efficiency to its users. With the integration of WIFI technology, the EB5000's monitor system is able to access and communicate with various smart devices and applications. This connectivity enables users to remotely control and monitor their EB5000, enhancing the overall experience and usability of the device. The APP's smart features provide users with an intuitive and user-friendly interface, allowing them to easily customize settings, view real-time data, and receive notifications. The addition of WIFI technology truly elevates the functionality of the EB5000 and makes it a more advanced and intelligent choice for users.
10.It is easy installation which Plug in &off
Did you know that batteries can work without a fan? This not only makes the operation more quiet, but it also reduces the risk of fan failure.
A great feature of this product is its ability to operate over a wide range of temperatures while maintaining excellent performance even at high temperatures.

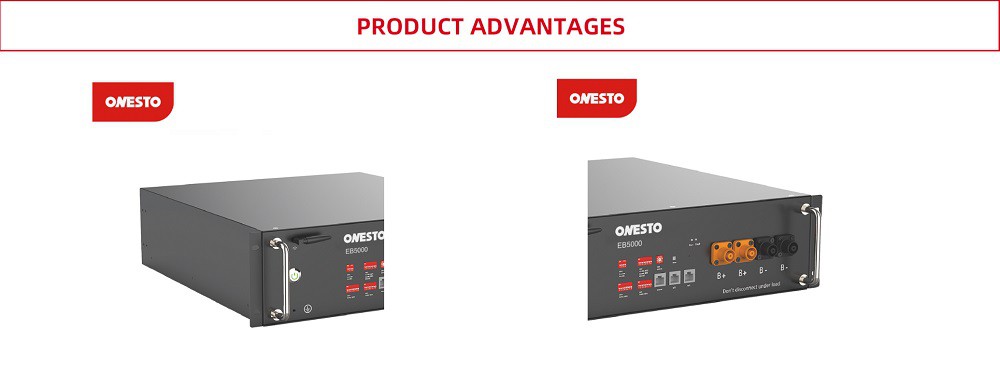

Detail Show
Product Specification
Model | EB5000 |
Total Energy* | 5.1kWh |
Usable Energy(DC)* | 4.8kWh |
Nominal Dis-/Charge Power | 3.0kW |
Peak Power(Only Discharge) | 6kW for 3s |
Voltage | 48~56Vd.c |
Nominal Voltage | 51.2Vd.c |
Nominal Current | 60A |
Max.Charge Voltage | 57.6Vd.c |
Weight | 45kg |
Dimension(mm) | 500*448*135mm |
Max.recommended DOD | 90% |
Operating Condition | Indoor |
WIFl Frequency Range | 2400MHz~2483MHz |
Humidity | <60%(No condensed water) |
Cooling Type | Natural cooling |
lrating | IP 20 |
Max.Connection Number | 8S/4P |
Warranty | 10 years |
Communication | CAN/ RS485 |
Protection Mode | Dual hardware protection |
Battery Protection | Over-current / Over-voltage / Short circuit / Under-voltage / Over temp |
Safety | Cell UL 1973CE/IEC62619 |
Transportation | UN 38.3 |
